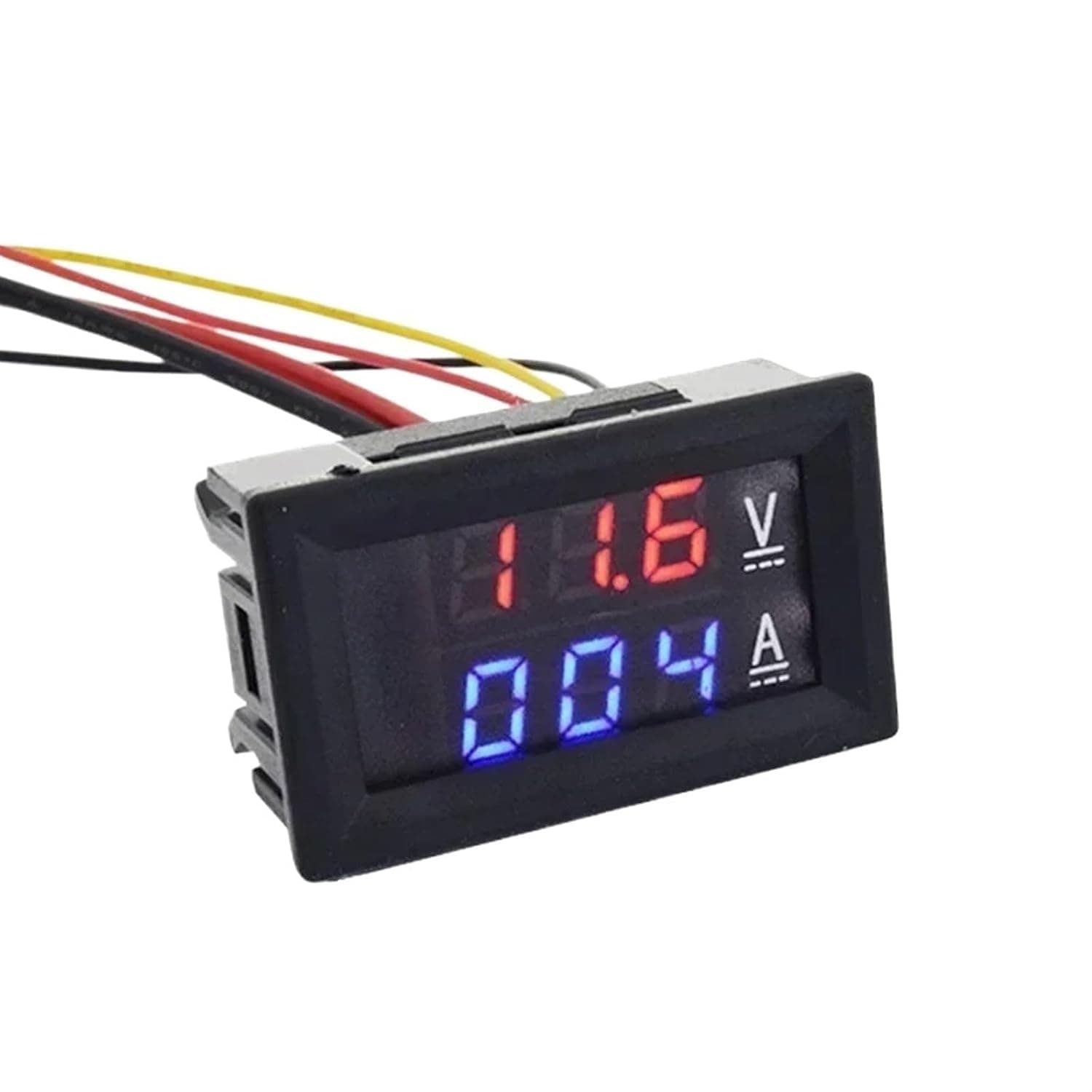

0.56'' Digital Voltmeter Ammeter DC 0-100V AC60-500V 1A 10A 50A 100A Red Blue LED Display Voltage Current Meters(Shunt,0-100A)

Sensor Ammeters Specification: Mounting Hold Size: 46 x 27mm Dimension: 0.56inch 48 x 29 x 22 mm Detection Current Range: 1A: 0-999mA / 10A: 0-10A / 50A: 0-50A / 100A: 0-100A Accuracy Class: ±1% <;;20mA Working Temperature: -10~65 Current Diverter: 75m LED color: Red+Blue Cable Length: 15-20cm Marking: -- Reading can be Calibrated -- For DC 50A and 100A need extra shunt. Shunt is not included -- For AC 10A and 100A need extra Current (CT). Current is not included 1. DC 0-1A 0-10A 0-100V Current Meter Voltmeter Input Voltage: DC 4-30V Detection Voltage: DC 0-100V Detection Current: 1A: 0-999mA / 10A:0-10A Refresh Rate: 350mS/Time Packing: Ampere Voltage Meterx1 + 2 set cables 2. DC 0-50A 0-100A 0-100V Current Meter Voltmeter Input Voltage: DC 4-30V Detection Voltage: DC 0-100V Detection Current: 50A: 0-50A / 100A:0-100A Refresh Rate: 350mS/Time Shunt: 75m Packing: 1pc Ampere Voltage Meter + 2 set cables Shunt is not included 3. AC 0-10A 0-50A 60-500V Current Meter Voltmeter Input Voltage: 60-500V Detection Voltage: 60-500V Detection Current: 10A: 0-10A / 50A:0-50A Refresh Rate: 500mS/Time Packing: 1pc Ampere Voltage Meter + 2 set cables Current (CT) is not included. Current Specification: One Input Voltage: 0 - 50A Senondary Output Voltage: 0 - 50mA Accuracy level: 0.2 Ratio: 1000/1 Load 50 Phase shift ():
